Nitriding for Casting Tools: Enhancing Durability and Performance

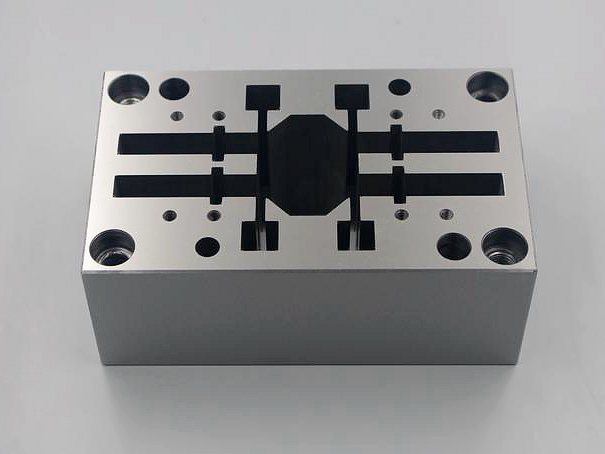

Introduction
Casting tools used in high-pressure die casting (HPDC) and gravity permanent mold casting face extreme working conditions, including contact temperatures exceeding 700°C, rapid thermal cycling, and mechanical stresses up to 200 MPa. To prevent premature tool failure, nitriding is applied to harden the surface of alloy tool steels such as H13, D2, and P20. This thermo-chemical process diffuses atomic nitrogen into the steel's surface, forming iron nitrides that enhance wear and fatigue resistance. The result is a durable tooling surface ideal for long production runs with minimal maintenance, aligning with the high-performance standards supported by Neway.
Benefits of Nitriding for Die Casting Tooling
Nitriding imparts several measurable enhancements to casting tools:
Surface Hardness: Nitrided layers can reach 900–1200 HV (Vickers Hardness), depending on steel composition and process parameters, substantially improving resistance to abrasive wear.
Dimensional Stability: Unlike carburizing or induction hardening, nitriding occurs at sub-critical temperatures (480–570°C), reducing thermal distortion and eliminating the need for post-process machining.
Fatigue Strength: The introduction of compressive residual stresses increases fatigue strength by up to 30%, particularly critical in components like shot sleeves and cores exposed to thermal shock.
Oxidation Resistance: Iron nitrides' outer epsilon (ε) phase exhibits improved resistance to scaling and chemical attack, minimizing soldering during aluminum alloy die casting.
Nitriding-Compatible Tool Steels
Nitriding effectiveness depends on steel composition, especially elements that form stable nitrides (Cr, Mo, V). Common nitride tool steels include:
Tool Steel Grade | Application | Chromium Content (%) | Typical Nitrided Layer Depth (mm) | Suitability |
|---|---|---|---|---|
Die casting dies, cores | 5.0–5.5 | 0.25–0.45 | Excellent | |
Wear-resistant inserts | 11.0–13.0 | 0.15–0.30 | Good | |
Low-temp plastic molds | ~1.5 | 0.10–0.20 | Fair |
H13 is the industry-standard steel for hot-working applications, delivering superior toughness, red hardness, and response to nitriding. It is frequently used in mass production for structural and automotive castings.
Common Nitriding Methods
Nitriding can be carried out using several process variants, each offering distinct advantages:
Gas Nitriding: Conducted in ammonia (NH₃) atmospheres at 510–530°C. It allows deep case depths up to 0.5 mm and is ideal for large die sets and sleeves.
Plasma (Ion) Nitriding: Uses electrical discharges in a nitrogen-hydrogen mix to ionize nitrogen atoms. The process occurs at 480–520°C, offering precise control over layer structure and reduced distortion—ideal for high-precision inserts.
Salt Bath Nitriding: Performed at 560°C in a cyanate-based molten salt medium. It provides rapid nitriding cycles (2–3 hours), but environmental handling and disposal limit its usage.
Each method is selected based on part geometry, desired hardness profile, and surface finish requirements.
Practical Application of Nitriding in Die Casting Tools
Nitriding is applied to tool components subjected to severe thermal cycling and adhesive wear. This includes core pins, cavity inserts, shot sleeves, and ejector systems. In aluminum HPDC using A380 alloy, nitrided H13 inserts can withstand over 100,000 cycles without reconditioning, doubling the tool life compared to untreated inserts. For zinc die casting involving Zamak 5, nitrided surfaces reduce tool galling and improve dimensional repeatability under cycles shorter than 30 seconds.
These improvements translate to reduced downtime, lower replacement costs, and more consistent part quality in demanding production environments.
Limitations and Alternatives of Nitriding
Nitriding does not benefit low-alloy steels lacking nitride-forming elements and offers limited depth compared to carburizing or boriding. It also cannot repair tools that already exhibit fatigue cracking or significant surface erosion.
Alternative treatments include:
PVD Coatings: Titanium nitride or chromium nitride layers provide excellent wear and corrosion resistance, require highly clean base surfaces, and are more expensive.
Chrome Plating: Enhances corrosion resistance and offers some wear protection but is prone to cracking under thermal fatigue.
Carburizing: Offers deeper hardened layers (>1.0 mm) for parts requiring surface wear resistance and core strength.
Neway’s tooling experts assist clients in selecting optimal treatments tailored to alloy performance, part geometry, and production volumes.
Integration with Post-Processing and Tool Maintenance
To maximize the longevity and consistency of nitrided tools, nitriding is paired with complementary post-processing techniques. Common post-nitriding processes include fine polishing (Ra < 0.4 µm) to eliminate micro-peaks and tumbling for edge smoothing. These finishing steps improve tool ejection and reduce aluminum or zinc adherence.
Routine inspections and re-nitriding cycles are incorporated into preventive maintenance plans, especially for core and cavity sets exceeding 50,000 cycles. This proactive approach is essential in extending tool utility, particularly when paired with compatible casting materials like AlZn10Si8Mg or CuZn37 brass.
