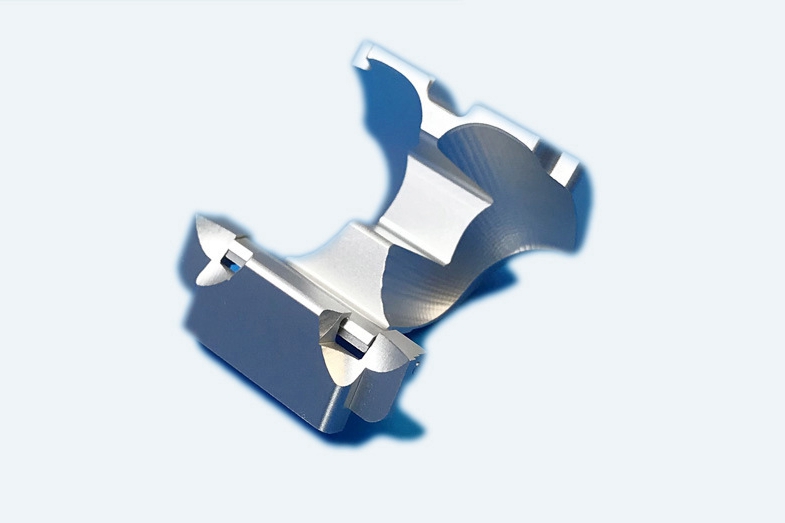

Apple Bluetooth Wireless Earphone Hinge Project Die Casting and CNC Machining
Introduction
Apple, renowned for precision and design excellence, collaborated with Neway to manufacture custom hinges for their Bluetooth wireless earphones. Leveraging Neway’s expertise in high-precision die casting and advanced CNC machining, the partnership ensured hinges met strict dimensional tolerances, durability standards, and exceptional aesthetic requirements critical for premium consumer electronics.
This collaboration significantly enhanced Apple's earphone designs' mechanical integrity and functionality, maintaining their iconic minimalism and unmatched quality.
Project Background and Customer Requirements
Apple’s Bluetooth wireless earphones required miniature hinge components with precise dimensional accuracy, robust mechanical strength, seamless operation, and flawless cosmetic finishes. These small, highly complex components were essential for earphone functionality, user comfort, and premium aesthetics.
Key customer requirements included:
Requirement | Industry Specification |
|---|---|
Dimensional precision | ±0.01 mm tolerance (ISO 2768-fine) |
Mechanical durability | Tensile strength ≥350 MPa (ASTM B85) |
Surface finish quality | Cosmetic-grade, Ra ≤0.8 µm (ISO 4287) |
Corrosion resistance | Minimum 120 hours salt-spray resistance (ASTM B117) |
Quality compliance | Apple's stringent internal QC standards |
Why Die Casting and CNC Machining for Earphone Hinges?
For precision electronics components such as earphone hinges, the combination of die casting and CNC machining offers unmatched benefits:
Precision Manufacturing: Die casting ensures consistent and repeatable production, ideal for intricate and miniature geometries down to 0.5 mm thickness.
High Mechanical Strength: Provides robust tensile strength (≥350 MPa), suitable for hinges subject to repeated mechanical stress.
Superior Surface Quality: Achieves flawless surface finishes (Ra ≤0.8 µm), ideal for cosmetic-grade consumer electronics.
Dimensional Accuracy: CNC machining achieves extremely tight tolerances (±0.01 mm), essential for hinge smoothness and reliability.
Specifically, Aluminum A380 was selected for its superior castability, strength, and surface-finishing capabilities.
Die Casting and CNC Machining Solutions Implemented
Neway provided an integrated precision manufacturing solution for Apple’s Bluetooth earphone hinges, including:
High-Precision Die Casting Tooling
Precision tooling was engineered using advanced CAD software (SolidWorks) and validated through mold-flow simulations (Moldex3D). The dies, made from high-quality H13 tool steel and heat-treated to 48 HRC, ensured dimensional consistency within ±0.005 mm and long-lasting performance beyond 100,000 production cycles.
High-Pressure Die Casting Production
Advanced high-pressure casting machines operated at 100-150 MPa pressures, strictly adhering to ISO 8062-3 standards. Precise temperature control (680-710°C molten aluminum) minimized porosity (<0.05%), ensuring structural integrity and durability of components.
Precision CNC Machining Operations
Subsequent precision CNC machining was employed to achieve final tolerances within ±0.01 mm. High-accuracy multi-axis machining ensured hinge functionality and consistent mechanical performance over repeated cycles.
Comprehensive Surface Finishing
Surface finishing techniques included precision polishing and anodizing to meet Apple's stringent cosmetic standards (Ra ≤0.8 µm), ensuring premium aesthetics and enhanced corrosion resistance.
Rigorous Quality Inspection
Quality control incorporated Coordinate Measuring Machines (CMM) accuracy within ±0.003 mm and X-ray inspection (ASTM E505), ensuring each hinge met Apple's stringent quality benchmarks.
Project Outcomes and Benefits Delivered
The collaboration with Neway delivered measurable advantages to Apple’s earphone hinge project:
Superior Dimensional Precision: Maintained consistent dimensional accuracy within ±0.01 mm, improving hinge assembly and functionality.
Enhanced Mechanical Durability: Achieved tensile strengths consistently above 350 MPa, ensuring reliable mechanical performance.
Outstanding Cosmetic Quality: Achieved surface finishes better than Ra 0.8 µm, significantly enhancing consumer appeal.
Reliable Corrosion Resistance: Components passed rigorous ASTM B117 corrosion tests, consistently exceeding 120-hour benchmarks, enhancing product lifespan.
Challenges and Solutions
Throughout this precise manufacturing project, Neway addressed critical industry-specific challenges:
Porosity Minimization: Advanced casting parameter optimization and real-time monitoring ensured internal porosity below 0.05%.
Maintaining Surface Quality: Advanced CNC machining and meticulous finishing techniques guaranteed surface finish consistency and aesthetic compliance.
Dimensional Stability: Continuous tooling calibration, strict temperature management, and precise machining processes maintained stringent dimensional tolerances throughout high-volume production.
Why Apple Chose Neway
Apple selected Neway based on several decisive factors:
Consumer Electronics Expertise: Proven record in precision manufacturing for premium electronics brands.
Advanced Manufacturing Capabilities: Expertise in integrating precision die casting and CNC machining technologies.
Rigorous Quality Assurance: Strict adherence to international and internal standards (ISO 9001, ISO 14001).
Comprehensive Service Offering: Integrated one-stop solutions covering tooling, casting, machining, finishing, and assembly.
Conclusion and Future Collaboration
The successful Apple Bluetooth wireless earphone hinge project demonstrated Neway’s precision die casting and CNC machining capabilities, delivering components meeting the highest industry standards. This partnership reinforced Apple's confidence in Neway, establishing a foundation for continued collaboration on future precision electronics projects.
