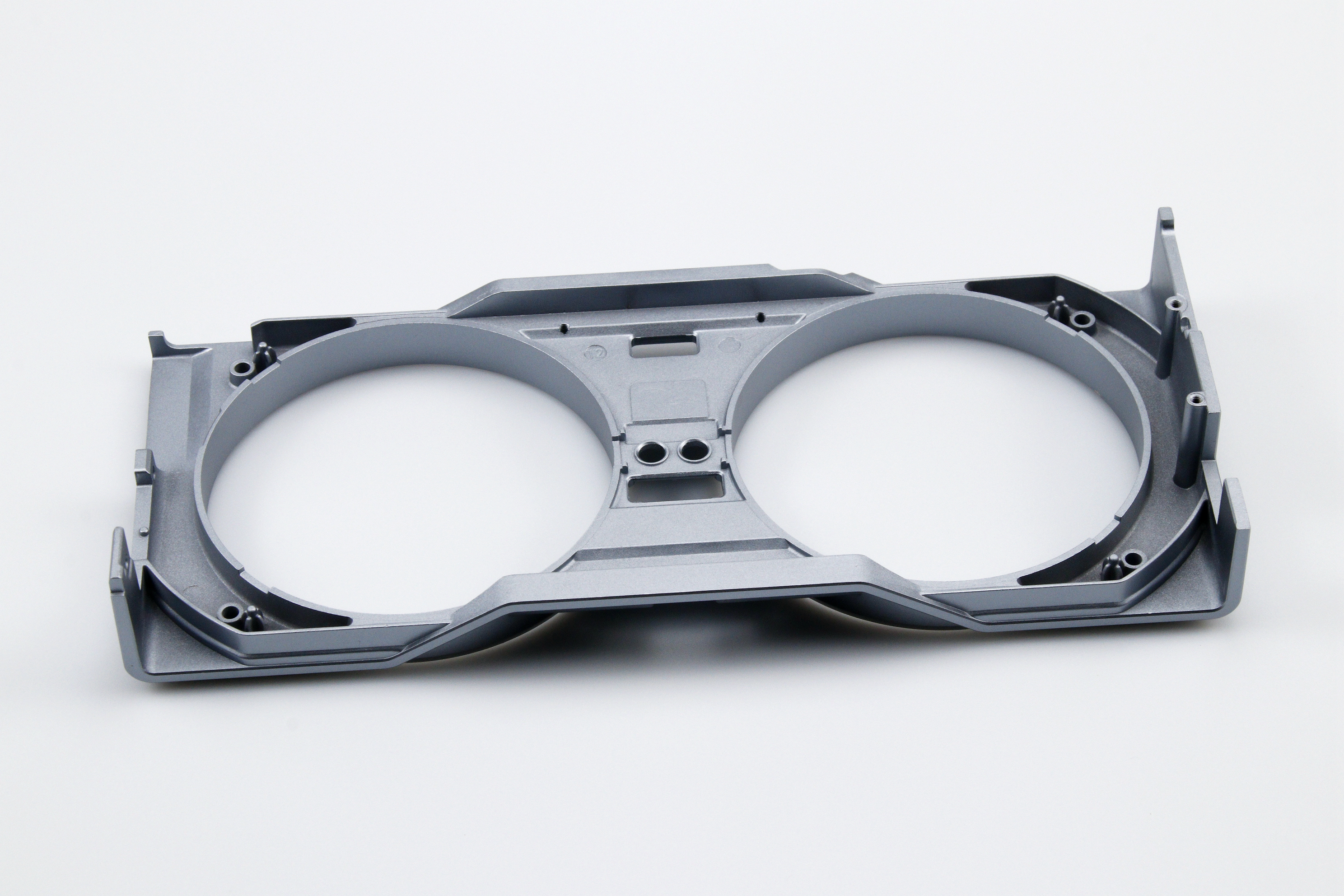

Gigabyte Custom GPU Frame High Pressure Aluminum Die Casting Supplying
Introduction
Gigabyte, a leader in high-performance computing hardware, partnered with Neway for custom GPU frame manufacturing utilizing high-pressure aluminum die casting. Neway provided precise aluminum GPU frames designed for optimal thermal efficiency, dimensional accuracy, and structural integrity.
This collaboration enabled Gigabyte to enhance GPU performance, durability, and aesthetic appeal, ensuring a competitive edge in the high-end graphics market.
Project Background and Customer Requirements
Gigabyte required specialized aluminum frames for housing advanced GPU modules. These frames needed superior dimensional precision, excellent heat dissipation properties, exceptional mechanical strength, and high-quality cosmetic finishes suitable for premium consumer electronics.
Key customer requirements included:
Requirement | Industry Specification |
|---|---|
Dimensional accuracy | ±0.02 mm tolerance (ISO 2768-f) |
Mechanical strength | Tensile strength ≥320 MPa (ASTM B85) |
Thermal conductivity | ≥150 W/m·K for effective heat dissipation |
Surface finish | Cosmetic-grade finish Ra ≤1.0 µm (ISO 4287) |
Quality compliance | Gigabyte internal QC standards (IPC Class 2) |
Why High Pressure Aluminum Die Casting for GPU Frames?
High-pressure aluminum die casting is highly suitable for GPU frame manufacturing due to several critical advantages:
Precision Castability: Achieves intricate designs with thin-walled structures down to 1 mm thickness, ideal for detailed GPU frames.
High Mechanical Strength: Aluminum alloys provide tensile strengths exceeding 320 MPa, offering excellent durability for demanding electronic applications.
Excellent Thermal Conductivity: Aluminum effectively dissipates heat, typically exhibiting thermal conductivity values of around 150-200 W/m·K, essential for GPU cooling.
Superior Surface Finish: Achieves smooth, cosmetic-grade surfaces ideal for premium visual and tactile product quality.
Specifically, Aluminum A380 alloy was chosen for its optimal balance of mechanical properties, thermal efficiency, and casting performance.
Die Casting Process and Solutions Implemented
Neway implemented a fully integrated manufacturing solution tailored to meet Gigabyte's stringent specifications:
Precision Tooling Development
Utilizing advanced CAD software (SolidWorks) and mold-flow simulations (Moldex3D), Neway designed precise molds made from premium H13 tool steel. Heat-treated to 46-48 HRC, these molds delivered consistent dimensional stability within ±0.01 mm tolerance, achieving mold life exceeding 120,000 cycles.
High-Pressure Die Casting Production
State-of-the-art die casting machinery operated at injection pressures between 80-150 MPa, maintaining strict ISO 8062-3 casting standards. Optimal temperature control (680-720°C molten aluminum) reduced casting defects, with porosity consistently below 0.1%.
Advanced Post-Casting Processes
To achieve superior product standards, Neway implemented rigorous post-processing techniques:
CNC Machining: Precision CNC machining ensured exact tolerances within ±0.02 mm, essential for GPU assembly.
Surface Treatments: High-quality anodizing, powder coating, and polishing provided excellent cosmetic finishes (Ra ≤1.0 µm) and corrosion resistance.
Quality Inspection: Comprehensive quality checks utilizing Coordinate Measuring Machines (CMM accuracy ±0.005 mm) and X-ray inspection (ASTM E505) ensured all GPU frames met stringent industry and Gigabyte standards.
Project Outcomes and Benefits Delivered
The successful project provided significant measurable outcomes for Gigabyte:
Precision and Accuracy: Achieved exceptional dimensional accuracy (±0.02 mm), enhancing product assembly precision and reliability.
Thermal Efficiency: Aluminum frames effectively dissipated heat, significantly improving GPU performance stability and product lifespan.
Enhanced Mechanical Durability: Robust structural strength ensured extended component durability, reducing warranty issues and customer returns.
Premium Cosmetic Quality: Superior surface finish (Ra ≤1.0 µm) increased consumer appeal, positioning Gigabyte products in the premium segment.
Challenges and Solutions
Neway effectively addressed several critical challenges throughout production:
Porosity Minimization: Precision-controlled casting parameters and optimized mold venting successfully minimized porosity (<0.1%), verified by rigorous inspection standards.
Consistent Surface Finish: Controlled anodizing and polishing processes ensured uniform, flawless cosmetic surface finishes meeting Gigabyte's premium aesthetic standards.
Maintaining Dimensional Stability: Regular tooling maintenance and continuous quality monitoring preserved dimensional accuracy over large-scale production volumes.
Why Gigabyte Selected Neway
Gigabyte chose Neway as their partner based on key differentiators:
Electronics Industry Experience: Proven track record delivering high-quality aluminum die casting components for advanced computing hardware.
Advanced Manufacturing Capabilities: State-of-the-art casting equipment and precision machining facilities capable of meeting high-end industry specifications.
Stringent Quality Control: Comprehensive quality management systems adhering strictly to international standards (ISO 9001, ISO 14001).
Complete One-Stop Solution: Integrated manufacturing solutions from initial tooling through to finished product assembly and inspection.
Conclusion and Future Collaboration
This successful collaboration between Gigabyte and Neway confirmed Neway’s ability to meet and exceed rigorous GPU frame manufacturing requirements. The partnership established a foundation for continued future cooperation, reinforcing Neway’s position as a trusted supplier in the high-performance computing hardware sector.
