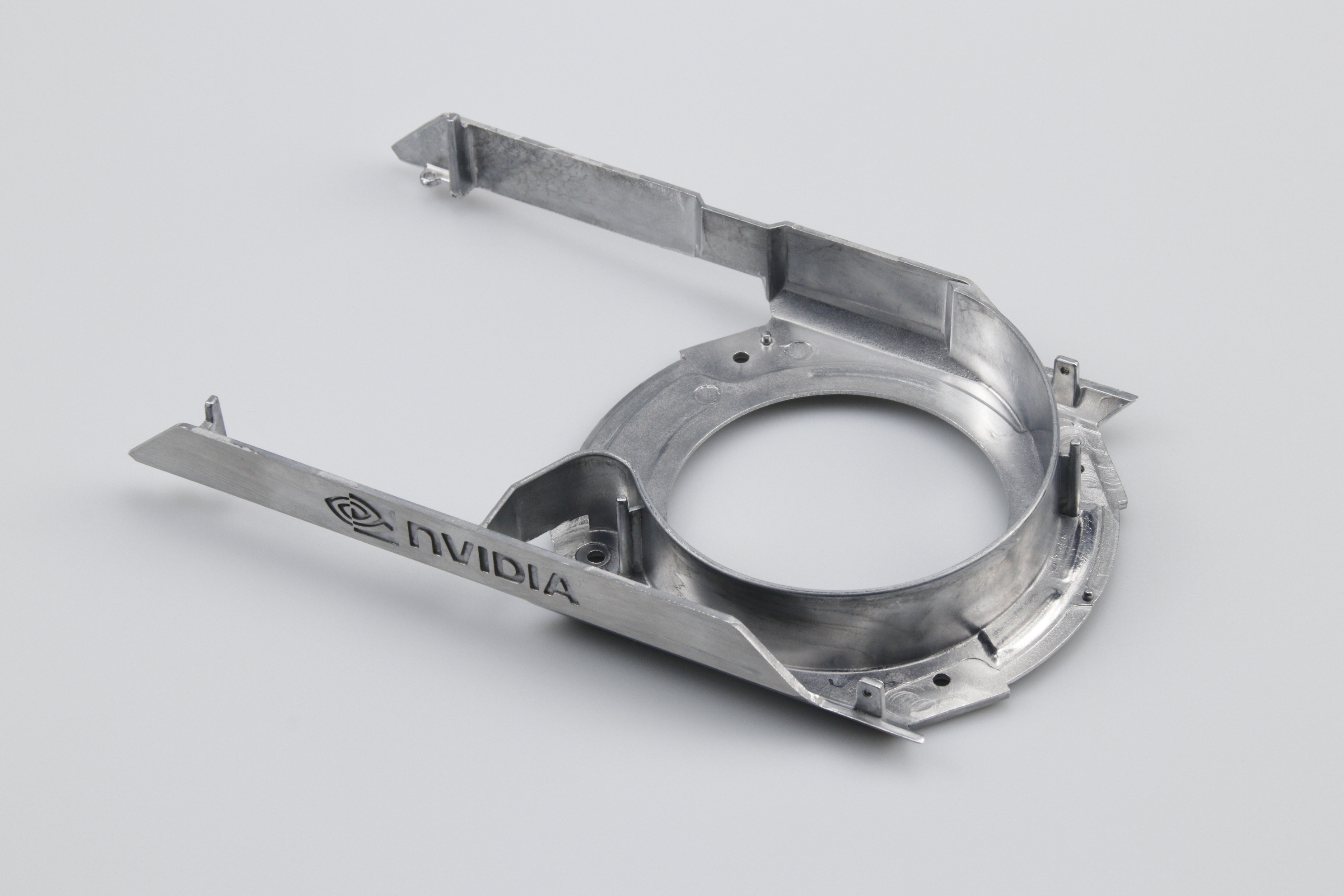

Neway Castings Supply: Custom Aluminum A380 Die Cast GPU Frame for Nvidia
Introduction
Nvidia, a global leader in GPU innovation, partnered with Neway to manufacture custom GPU frames through precise Aluminum A380 die casting. These frames required exceptional dimensional accuracy, mechanical strength, and optimized thermal performance.
Leveraging advanced casting processes, Neway successfully produced premium-quality aluminum components meeting Nvidia's stringent specifications, significantly enhancing GPU reliability, efficiency, and overall product performance.
Project Background and Customer Requirements
Nvidia required highly specialized aluminum frames to house advanced GPU modules, essential for efficient heat dissipation, structural integrity, and consistent dimensional stability in high-performance computing applications.
Key customer requirements included:
Requirement | Industry Specification |
|---|---|
Dimensional accuracy | ±0.02 mm tolerance (ISO 2768-f) |
Mechanical strength | Tensile strength ≥324 MPa (ASTM B85) |
Thermal conductivity | ≥150 W/m·K for efficient heat dissipation |
Surface finish | Smooth surface finish Ra ≤1.2 µm (ISO 4287) |
Quality compliance | Nvidia’s internal QC and reliability standards |
Why Aluminum A380 for GPU Frames?
Aluminum A380 is widely selected by electronics and computing industries for GPU and other high-performance component frames due to its superior material characteristics:
Exceptional Castability: A380 alloy can precisely fill complex molds, achieving intricate, thin-wall designs down to 1 mm, critical for GPU frames.
High Mechanical Strength: Exhibits robust mechanical properties, with tensile strength up to 324 MPa, suitable for demanding structural applications.
Outstanding Thermal Conductivity: Superior heat dissipation (approximately 160 W/m·K), crucial for cooling high-performance GPU modules.
Lightweight and Durable: Provides a significant weight advantage (up to 35% lighter than steel), enhancing product portability and reducing overall system load.
Die Casting Process and Solutions Implemented
Neway provided Nvidia with an advanced and integrated die casting manufacturing solution tailored to meet their exact GPU frame specifications:
Precision Tooling Development
Precision dies were engineered using advanced CAD software (SolidWorks) and mold-flow simulation (Moldex3D). Premium-quality H13 tool steel, heat-treated to 48 HRC, ensured dimensional consistency within ±0.01 mm tolerance and mold durability exceeding 120,000 cycles.
High-Pressure Die Casting Production
Neway employed high-pressure die casting machines operating at pressures between 80-150 MPa, closely adhering to ISO 8062-3 standards. Rigorous temperature control (molten aluminum at 680-720°C) minimized porosity (consistently below 0.1%) and eliminated casting defects such as cold shuts or shrinkage.
Comprehensive Post-Casting Processes
To achieve Nvidia's precision and cosmetic standards, rigorous post-casting processes were conducted:
CNC Precision Machining: CNC machining achieved final dimensional accuracy within ±0.02 mm, ensuring exact component specifications.
Surface Treatments: Advanced finishing techniques, including anodizing and powder coating, provided protective and visually appealing surface qualities, meeting strict electronics industry standards (ISO 9227).
Quality Inspection: Comprehensive quality control methods, including Coordinate Measuring Machines (CMM) with accuracy ±0.005 mm and X-ray inspection (ASTM E505), ensured compliance with Nvidia’s stringent quality requirements.
Project Outcomes and Benefits Delivered
The collaboration delivered substantial, quantifiable advantages to Nvidia:
Exceptional Dimensional Accuracy: Achieved tolerances within ±0.02 mm, enhancing GPU assembly precision and reliability.
Superior Thermal Performance: Delivered GPU frames that effectively dissipated heat, significantly improving GPU operational efficiency and lifespan.
Enhanced Production Efficiency: Reduced manufacturing cycle times by approximately 15%, improving overall supply chain responsiveness.
Cost Efficiency: Realized approximately 12% cost savings through optimized tooling, minimized material wastage (<2%), and streamlined post-processing methods.
Challenges and Solutions
Throughout the GPU frame manufacturing process, Neway successfully overcame several industry-critical challenges:
Porosity Minimization: Advanced die casting process control and optimized mold venting significantly reduced internal porosity (<0.1%), verified by stringent ASTM E505 X-ray inspection.
Surface Quality Maintenance: Consistent monitoring and precise finishing processes ensured uniform surface finishes meeting Nvidia’s strict Ra ≤1.2 µm specification.
Dimensional Stability: Regular maintenance, rigorous temperature management, and continuous quality control maintained exceptional dimensional accuracy over extended production runs.
Why Nvidia Chose Neway
Nvidia selected Neway based on several compelling differentiators:
Extensive Electronics Manufacturing Expertise: Proven track record in precision aluminum die casting for the electronics industry.
Advanced Technical Capabilities: In-depth knowledge of aluminum metallurgy, state-of-the-art casting and machining equipment.
Stringent Quality Assurance: Robust quality management systems adhering to international standards (ISO 9001, ISO 14001).
Complete One-Stop Service: Comprehensive, integrated one-stop manufacturing solutions from tooling to finished products.
Conclusion and Future Collaboration
The successful partnership between Nvidia and Neway demonstrated exceptional results in precision Aluminum A380 GPU frame manufacturing. The project confirmed Neway’s capability to meet and exceed stringent technology industry standards, positioning the company as a trusted, long-term partner for Nvidia’s future GPU development initiatives.
