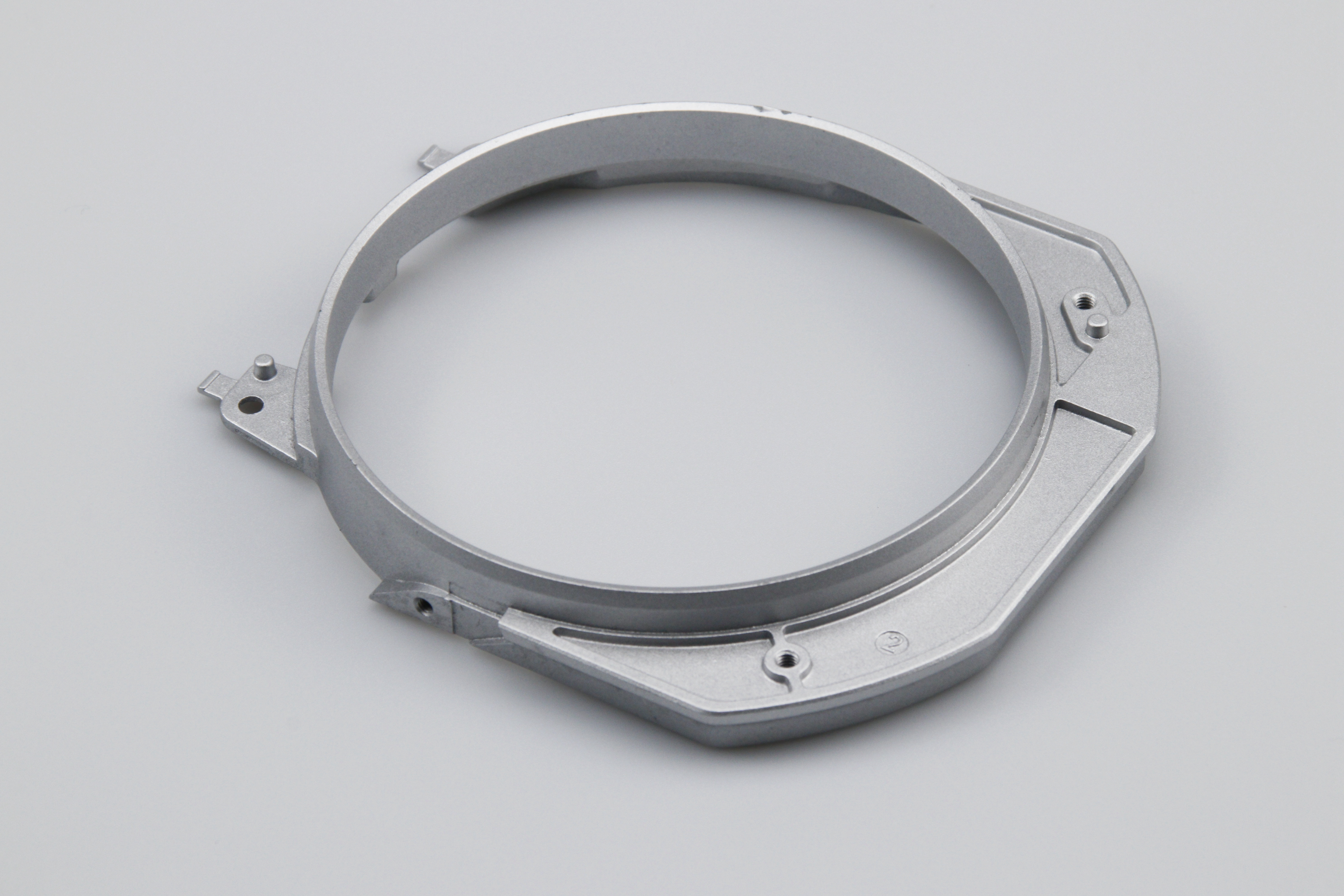

Volkswagen Supplier: Aluminum ADC12 High Pressure Precision Die Casting Projects Study
Introduction
Volkswagen, a leader in automotive innovation, demands precision and reliability from its manufacturing processes. Utilizing high-pressure aluminum die casting with Aluminum ADC12 alloy is critical for meeting stringent automotive specifications.
Neway’s advanced expertise in ADC12 ensures precise dimensional tolerances, superior structural integrity, and exceptional surface finishes, contributing directly to Volkswagen’s performance, safety standards, and overall vehicle quality.
Project Background and Customer Requirement
Volkswagen sought a reliable manufacturing partner for complex, high-strength die cast parts integral to transmission housings, engine blocks, and structural supports. The selected material, Aluminum ADC12, renowned in automotive applications for its exceptional fluidity, corrosion resistance, and robust mechanical properties, was pivotal to meet Volkswagen's demanding standards.
Key customer requirements included:
Requirement | Industry Specification |
|---|---|
Dimensional accuracy | ISO 2768 standard tolerance of ±0.05 mm |
Consistent mechanical properties | Minimum tensile strength: 240 MPa (ASTM B85) |
Surface finish quality | Surface roughness Ra ≤ 1.6 µm (ISO 4287) |
Quality compliance | Volkswagen Group Quality Management System (VDA 6.1) |
Why Aluminum ADC12?
Aluminum ADC12 is extensively adopted in high-pressure die casting within the automotive industry due to its superior characteristics:
Excellent Castability: ADC12 achieves intricate geometries and thin walls (down to 1.2 mm thickness) with superior mold-filling capabilities.
High Mechanical Strength: Offers consistent tensile strength of approximately 240-290 MPa and elongation ≥1.5%, suitable for load-bearing automotive components.
Superior Thermal Conductivity: Exhibits thermal conductivity around 96 W/m·K, ideal for heat-sensitive components such as engine casings.
Enhanced Corrosion Resistance: Ensures prolonged durability against environmental exposure, complying with automotive longevity requirements (ASTM B117 salt spray tests).
Die Casting Process and Solutions Implemented
Neway devised a comprehensive solution leveraging advanced high-pressure die casting (HPDC) technology, meticulously following industry standards and Volkswagen’s rigorous specifications:
Tool and Die Development
Precision tooling was designed using advanced CAD software (SolidWorks) and validated through mold-flow simulation (Moldex3D). Tools manufactured from premium H13 tool steel, heat-treated to 46-48 HRC hardness, guaranteed mold longevity exceeding 100,000 cycles with dimensional consistency within ±0.02 mm.
High-Pressure Die Casting Production
Neway utilized high-pressure casting machines delivering injection pressures from 80 to 150 MPa (ISO 8062-3 standards). Controlled metal temperature (680-720°C) and precisely regulated cooling systems minimized porosity (<0.1%) and eliminated cold shuts or shrinkage defects, achieving defect rates under 0.5%.
Rigorous Post-Casting Processes
Meticulous post-machining methods included:
CNC Machining: High-precision CNC machining ensured dimensional tolerances of ±0.01 mm, critical for automotive component functionality.
Surface Treatments: Powder coating and anodizing processes provided superior corrosion protection and cosmetic finishes in compliance with automotive industry standards (ISO 9227 and ASTM D1730).
Quality Assurance: Employing Coordinate Measuring Machines (CMM, accuracy ±0.005 mm) and X-ray inspection (ASTM E505 standards) to guarantee defect-free, specification-compliant components.
Project Outcomes and Advantages Delivered
This ADC12 die casting project demonstrated quantifiable outcomes:
Outstanding Quality Compliance: 99.5% adherence to Volkswagen's strict quality metrics and specifications (VDA 6.1 and ISO/TS 16949).
Enhanced Production Efficiency: Optimized cycle times, reducing production time by approximately 15% compared to industry-standard benchmarks.
Cost Reduction: Achieved cost efficiency improvements of nearly 10%, primarily through process optimization, minimal scrap rates (<2%), and extended tool life cycles.
Robust Supply Chain: Consistent delivery performance, meeting 100% on-time delivery targets, reinforcing reliability within Volkswagen's global production schedule.
Challenges and Solutions
Significant industry-specific challenges addressed during the ADC12 casting process included:
Porosity Control: Optimized die temperatures, pressure settings, and precise mold venting reduced porosity to industry-leading levels (<0.1%), confirmed via ASTM E505 X-ray inspection.
Dimensional Stability: Sustained dimensional accuracy through controlled thermal regulation and proactive die maintenance, maintaining ISO 2768-1 tolerance class 'f' across high production volumes.
Surface Defect Mitigation: Implemented enhanced finishing protocols, reducing surface defect rates below industry-average (<0.5%), adhering strictly to Volkswagen’s aesthetic and functional criteria.
Why Volkswagen Chose Neway
Volkswagen selected Neway as a strategic supplier due to:
Proven Automotive Experience: Track record of successful automotive component supply meeting international standards (ISO/TS 16949 certified).
Advanced Technical Competency: Comprehensive understanding of ADC12 metallurgy and precision die casting techniques aligned with global automotive standards.
Uncompromising Quality Assurance: Robust quality management systems including full compliance with automotive industry standards (ISO 9001 and VDA 6.1).
Comprehensive Capabilities: Integrated one-stop service from tooling to finishing processes, streamlining procurement and ensuring consistent quality.
Conclusion and Future Collaboration
The Aluminum ADC12 high-pressure die casting collaboration with Volkswagen established Neway as a trusted supplier capable of meeting and exceeding stringent automotive industry standards. This successful partnership sets the foundation for future projects, further solidifying Neway’s position as a leading automotive die casting technology supplier.
